Lab 3.3 - Read the deployment log, and what .forceignore hides from it¶

Level: 3 Release Manager

Time: ~25 min

You will: read a deployment log properly, then review a Pull Request whose check fails on a field that is right there in its diff, and find the file that hides it.

The situation¶

Merging Mariia's layout fix started a deployment job. Most people watch the colour and move on.

A release manager reads it, because the deployment log is the only place that says what actually reached the org, and the difference between that and what you thought you were shipping is where incidents come from.

Before you start¶

Lab 3.2 finished: Mariia's layout fix merged into integration

Part 1: read the log¶

1. Open the job¶

Actions tab of your fork (your own copy of the course repository on GitHub, for example github.com/my-username/sfdx-hardis-training), the Process Deployment (sfdx-hardis) run that started when you merged.

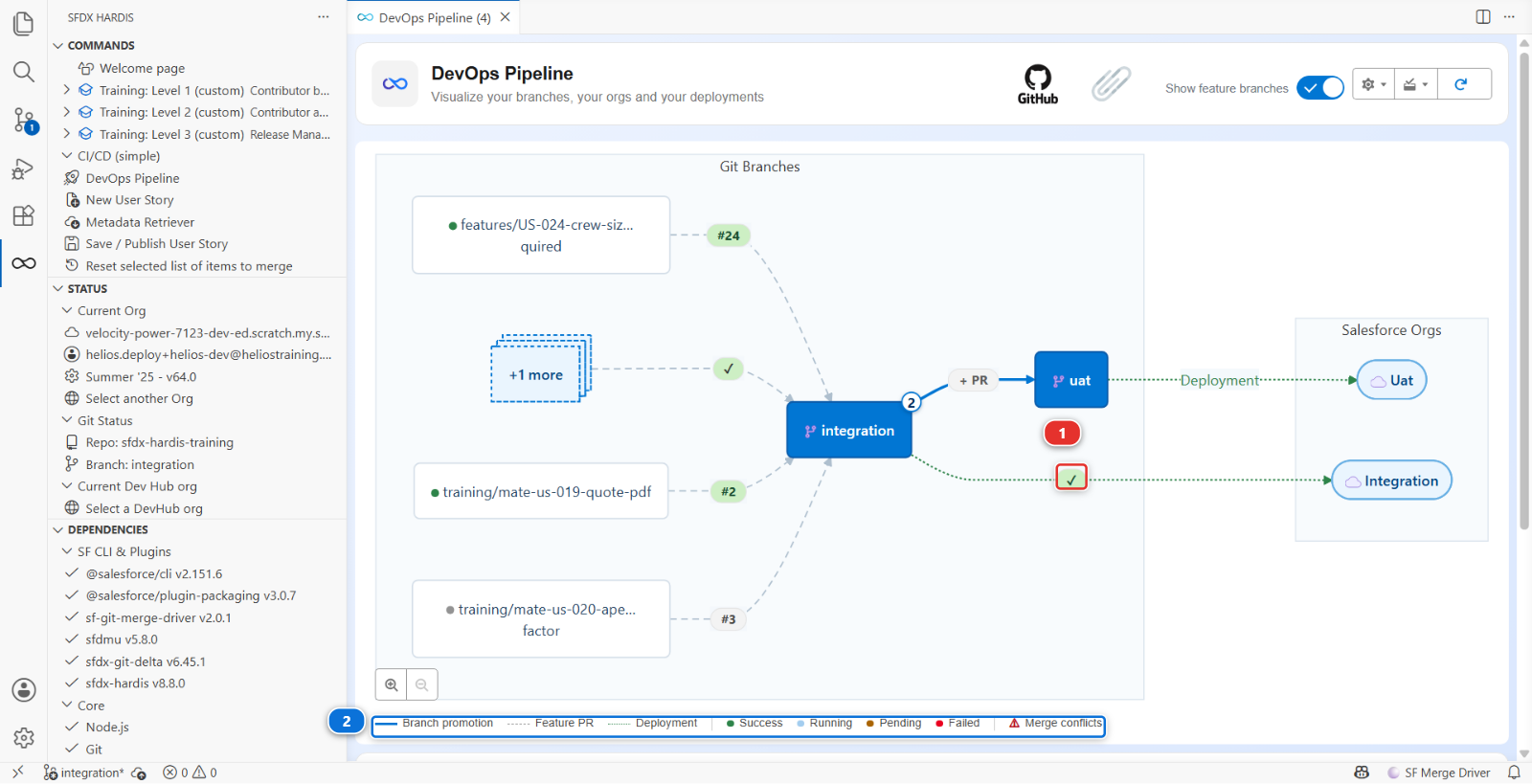

Or from VS Code: the DevOps Pipeline panel puts the job on the arrow between integration and its org (1), coloured with its status, and the legend under the diagram (2) says what each colour means. Click the marker to open the run.

2. Read it in five parts¶

An sfdx-hardis deployment log has the same shape every time:

One: authentication. Which org, which mechanism. After Lab 3.1 this says JWT. If it ever says something else, something changed that you did not change.

Two: what to deploy. The package it computed, and where from. This is the interesting part and step 3 is about it.

Three: pre-deploy actions. Anything declared to run before, with its result.

Four: the Salesforce deployment. Components deployed, tests run, coverage, duration. On a merge job, look for Deployment mode: FULL + Quick Deploy. The check job of your Pull Request already validated this exact package, tests included, and the merge job asked Salesforce to apply that validation rather than deploy again. That is why it takes seconds, and why it runs no test itself.

Five: post-deploy actions, then the notification.

3. Understand why the package is bigger than the diff¶

You changed one component. Now read what the job actually sent.

Open the package: DevOps Pipeline panel, Deployment packages menu, Package XML. It lists the whole Helios app, a few dozen components, and that is the package: on this project every deployment to integration sends all of it, whatever the diff said. The log's count of components sent will say so.

That is the default, and it is worth feeling once before you learn the thing that fixes it.

Delta deployment. Instead of sending the declared package, sfdx-hardis computes what changed between the commit already deployed to this org and the new one, and sends only that. A full Salesforce deployment of a mature project takes 40 minutes; a delta takes 3. The trade is that the org has to genuinely be at the commit the pipeline thinks it is at.

This project has delta off, on purpose

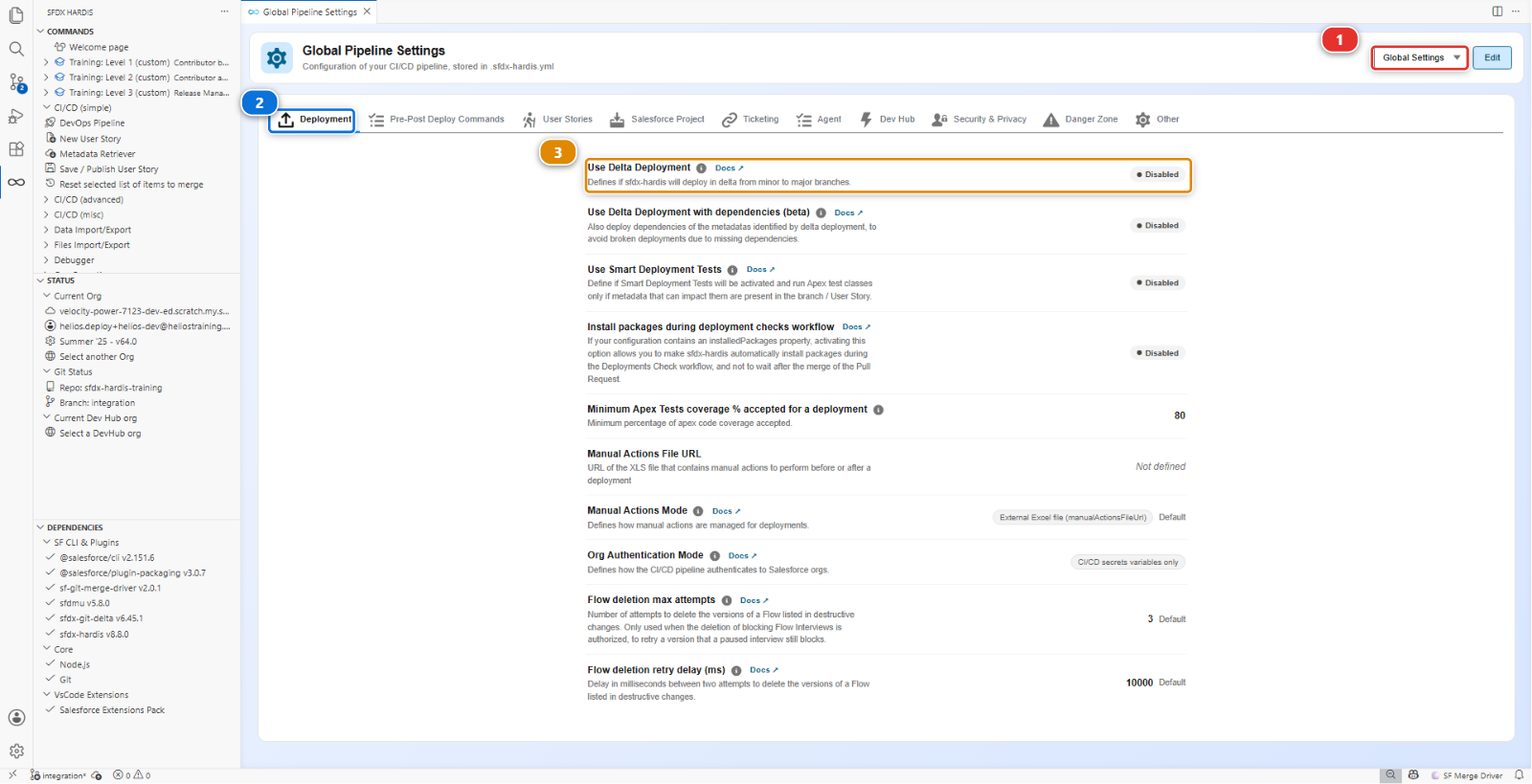

useDeltaDeployment is absent from config/.sfdx-hardis.yml, so every deployment in this course sends the full package. Read it for yourself: DevOps Pipeline, gear menu, Pipeline Settings, scope Global Settings (1), Deployment tab (2). Use Delta Deployment (3) shows Disabled.

The Helios app is about fifty components, so a full deployment costs a minute and delta would save nothing while adding a way for the course to fail confusingly on a missing dependency. Turn it on when a deployment starts costing you real time, which on a real project is soon. There is a second key for promotions between major branches, enableDeltaDeploymentBetweenMajorBranches, on the Danger Zone tab, and it is off by default for the same reason: a promotion carries more, and is the riskiest place to send less.

Find the line Components: N deployed in the log, under Deployment summary. On a standard run of this course it is a little over fifty. Compare it with the one file of your Pull Request. The gap is the cost of having delta off, and it is the argument for turning it on.

4. Know what Smart Deploy is, and what it is not¶

"Smart Deploy" is the name of the command, not of a filter. sf hardis:project:deploy:smart is the orchestrator: it decides the package, reuses a validated deployment as a Quick Deploy when it can, runs the pre and post deployment actions, translates Salesforce errors into advice, and writes the Pull Request comment. It is smart about the job, not about comparing your repository with the org component by component.

Two things are often assumed to be part of it and are not:

Nothing compares each component with the org and drops the identical ones. There is an opt-in mechanism that does something close, manifest/packageDeployOnChange.xml, and it only ever looks at the components listed in that file. The file does not exist in this project, and it does nothing unless it does
Cleaning is not a deployment filter. It ran on a contributor's machine, at commit time. Step 3 of the under the hood section below is about that

So the honest answer to "why did it deploy fifty components to change one" is: because nothing was configured to stop it. That is a decision this project made, not a thing the tool does for you.

5. Verify in the org, not in the log¶

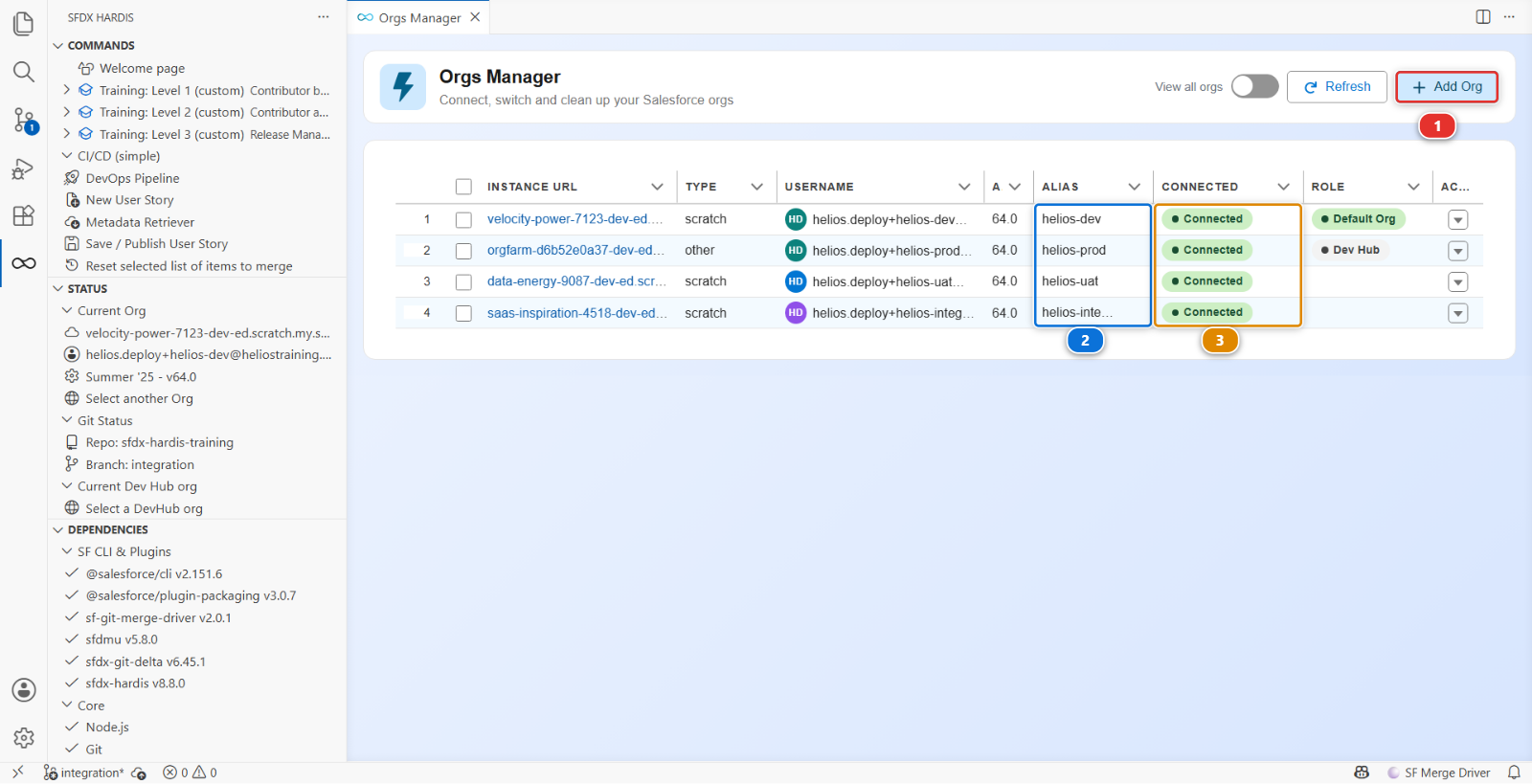

Open helios-integration from Orgs Manager: find it by its alias (2), check it still says Connected (3), then Open from the actions menu at the end of its row. If it says disconnected instead, that same menu offers Reconnect, and Add Org (1) is how you connect an org the table does not have at all.

Check your change is actually there: open an Installation record, and Total Capacity (kW) is back on the layout, in the right-hand column beside Mariia's cap field.

A log is a claim. The org is the fact. On a real project you check the org after every deployment to a major environment, and it takes thirty seconds.

Part 2: what .forceignore hides¶

6. A Pull Request that fails on a field it carries¶

Romain has a story for the planners. Training: Level 3 > Simulate my teammates, and pick US-056 Show the panels each crew member has to lay. It opens his Pull Request into integration.

Wait for its checks. The deployment check fails, and the sfdx-hardis comment names a field:

Installation__c-Installation Layout  In field: field - no CustomField named Installation__c.Crew_Workload__c found

Now open Files changed. Crew_Workload__c.field-meta.xml is there, in the diff. The field is in the Pull Request, and the deployment says it does not exist.

7. Find what the deployment never saw¶

When a component is in the branch and not in the deployment, the first file to open is .forceignore. It tells the Salesforce CLI what to ignore when retrieving and when deploying, and a component it matches is invisible in both directions, with no error and no warning.

Romain's diff changes it too:

# My scratch test fields, never versioned (Romain)
**/objects/Installation__c/fields/Crew_W*.field-meta.xml

That line is a pattern, not a file name. The * stands for any text, so it matches every field on Installation whose name starts with Crew_W: his scratch test field, and Crew_Workload__c, the field of his own story. The deployment left it out, the layout and the permission set that use it reached the org without it, and Salesforce refused them.

.forceignore is a project-wide file, and the release manager's to guard: one careless line in it changes what every deployment sends, for everybody, from then on.

8. Send it back with the fix named¶

Leave one review comment on the .forceignore line of the diff:

This wildcard also matches Crew_Workload__c, the field of this story, so no deployment ever sends it. Name your test field exactly, with no *, so nothing else can match by accident.

An exact path ages badly too, but it ages loudly: the day the file disappears, nothing else starts being ignored.

Romain answers: Simulate my teammates > US-056 Romain names his test field exactly in .forceignore. It adds his commit to the same Pull Request, the check runs again, and it goes green. Read the diff of his new commit, then merge.

Under the hood: where the package comes from, and where cleaning really happens

The job ran:

sf hardis:project:deploy:smart

and the package it sent was built like this:

Start from manifest/package.xml, the declared package, plus manifest/destructiveChanges.xml for what is being removed
Delta, if useDeltaDeployment is on: sfdx-git-delta computes the changed components between the last deployed commit and HEAD, and everything else is taken back out of the package. enableDeltaDeploymentBetweenMajorBranches controls whether the same applies to a major-to-major deployment, and is off by default because a promotion to production is the worst possible place to discover that the org drifted
The overwrite manager, if manifest/package-no-overwrite.xml exists: the org is queried, and any component listed in that file that the org already has is taken out. It is scoped to its own list and nothing else, and a component it protects is still created in an org that does not have it yet
Deploy-on-change, if manifest/packageDeployOnChange.xml exists: those components, and only those, are retrieved from the org and compared, and the unchanged ones are dropped

Steps 2, 3 and 4 are all off in this project, so what Salesforce receives is step 1.

Cleaning is not in that list, and this is the thing to take away. The autoCleanTypes rules run inside sf hardis:work:save, on a contributor's machine, before the commit. They rewrite the files on disk and commit the result, which is why Lab 1.5 could show you the diff they produced. By the time a deployment runs, there is nothing left to clean: the repository already is the cleaned version.

Two failure modes worth recognising:

The org drifted. Somebody changed something in the org by hand and the deployment overwrites it without a word, because nothing compared. Lab 3.7 is about that
Delta lost a dependency. Your change needs a component that did not change, so the delta does not carry it, and the deployment fails on a reference. The fix is not to disable delta: it is to include the dependency, which manifest/package.xml is for

What you should see¶

A green Process Deployment (sfdx-hardis) run on integration
A log where you can name how many components went, and why that number is not one
The change present in helios-integration
Romain's US-056 merged, Crew_Workload__c in helios-integration, and no wildcard left in .forceignore

If it goes wrong

The deployment failed after the check passed. Something changed between the two: the org, or another deployment landing first. Read the error, and check whether somebody deployed by hand.

The log says "nothing to deploy". With delta off that should not happen on this project, because the package is declared rather than computed. If it does, check that manifest/package.xml is still in the branch and still lists something.

The job never started. The workflow only triggers on pushes to major branches. Check that the merge really landed on integration.

Romain's check still fails after his second commit. The check ran on the merge of his branch with integration as it was when he pushed. If you changed .forceignore on integration in the meantime, click Update branch on his Pull Request: GitHub merges integration into it, and the check runs again.
