Lab 2.7 - Resolve a Git merge conflict with a teammate¶

Level: 2 Contributor advanced

Time: ~35 min

You will: face a real merge conflict on two files that conflict very differently, and resolve both without losing anybody's work.

The situation¶

Mariia Pyvovarchuk has been working on US-018 - Cap the crew size a planner can assign, in the same flow and the same permission set as you. She merged this morning. You did not.

Git conflicts on a Salesforce project are almost always one of two shapes: a Permission Set where two people added different entries, and a Flow where two people changed the logic. The first is mechanical. The second requires you to understand both changes.

Before you start¶

Lab 2.6 finished and merged
Nothing waiting in the Source Control panel that you still care about

Steps¶

1. Start your own change¶

New User Story (2), under Project Contribution Workflow (1). Name US-034-crew-override, org helios-dev.

In helios-dev:

Open the flow Installation Assign Crew and add a decision so that an installation whose roof type is Flat gets a crew of at least 3, whatever else the flow decided. Connect it to the same assignment the flow already ends on, so the new rule runs after the status change
On the permission set Helios Delivery Manager, grant edit access on Installation__c.Crew_Notes__c, so a planner can say why a crew was raised

Retrieve the flow and the permission set, commit them, and stop there: do not publish yet.

2. While you were building it, Mariia merged¶

Mariia does not exist. Her work does, and the training reproduces it inside your own fork so you can genuinely review and merge it. Do this after your own change exists, because that is the situation the lab is about: you branched, she merged, and neither of you knew about the other.

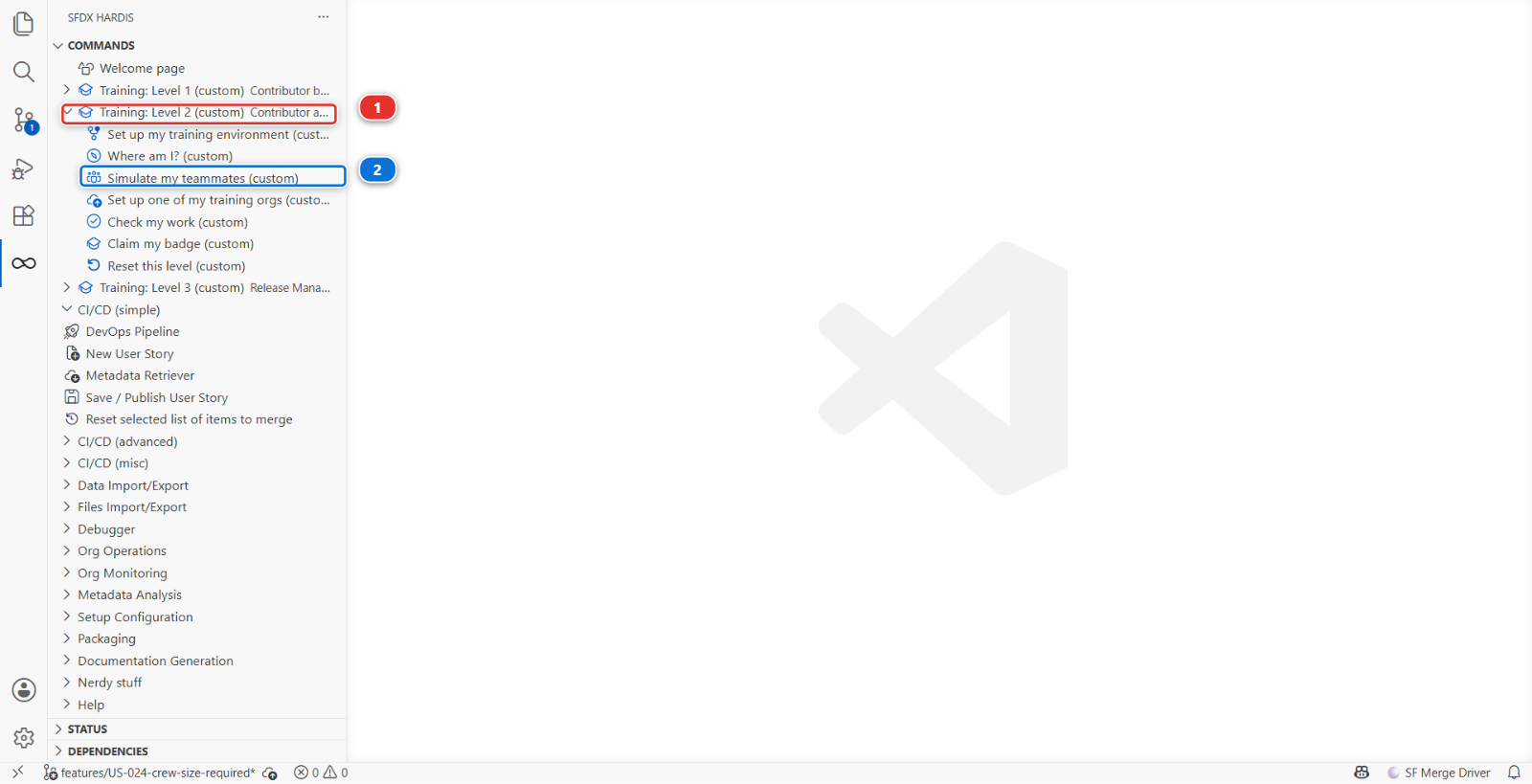

Training: Level 2 (1) > Simulate my teammates (2), from the Welcome page or from the sfdx-hardis command list, and choose US-018 Cap the crew size a planner can assign.

It creates the branch training/mate-us-018-crew-capacity from your current integration, commits Mariia's changes under her name, pushes it to your fork (your own copy of the course repository on GitHub, for example github.com/my-username/sfdx-hardis-training), and opens the Pull Request.

Review it briefly, then merge it. Mariia is now in integration, and you are behind.

Under the hood: why the teammate is replayed rather than pre-existing

The command ran:

node scripts/training.mjs simulate

which copied the files from scripts/simulate/us-018-crew-capacity/files/ over your working tree, committed them with Mariia's name and email, pushed the branch to your fork and opened the Pull Request there with gh pr create.

It has to work this way. A Pull Request lives in one repository: you cannot review one that exists in somebody else's. And a branch shipped in the repository months ago would not share a sensible ancestor with the integration you have built up over five labs, so the conflict would be either absent or absurd.

The same patch set produced the real teammate Pull Requests on the public training repository, so what you are reviewing is byte for byte what the screenshots show.

3. Publish, and watch the Pull Request refuse to merge¶

Now publish your own change: Save / Publish, push, and open the Pull Request into integration.

GitHub shows:

This branch has conflicts that must be resolved force-app/main/default/flows/Installation_Assign_Crew.flow-meta.xml force-app/main/default/permissionsets/Helios_Delivery_Manager.permissionset-meta.xml

Two files, two completely different kinds of problem.

Neither of them is git being awkward. Both changes are real, both are wanted, and in both files the two of you wrote in the same place: Mariia granted a field on the permission set one line from where you granted yours, and she connected the same assignment element in the flow to a decision of her own. A merge tool cannot know which of two connectors should win. You can.

4. Bring integration into your branch¶

Open the Source Control panel, the icon of three small circles joined by lines in the left bar.

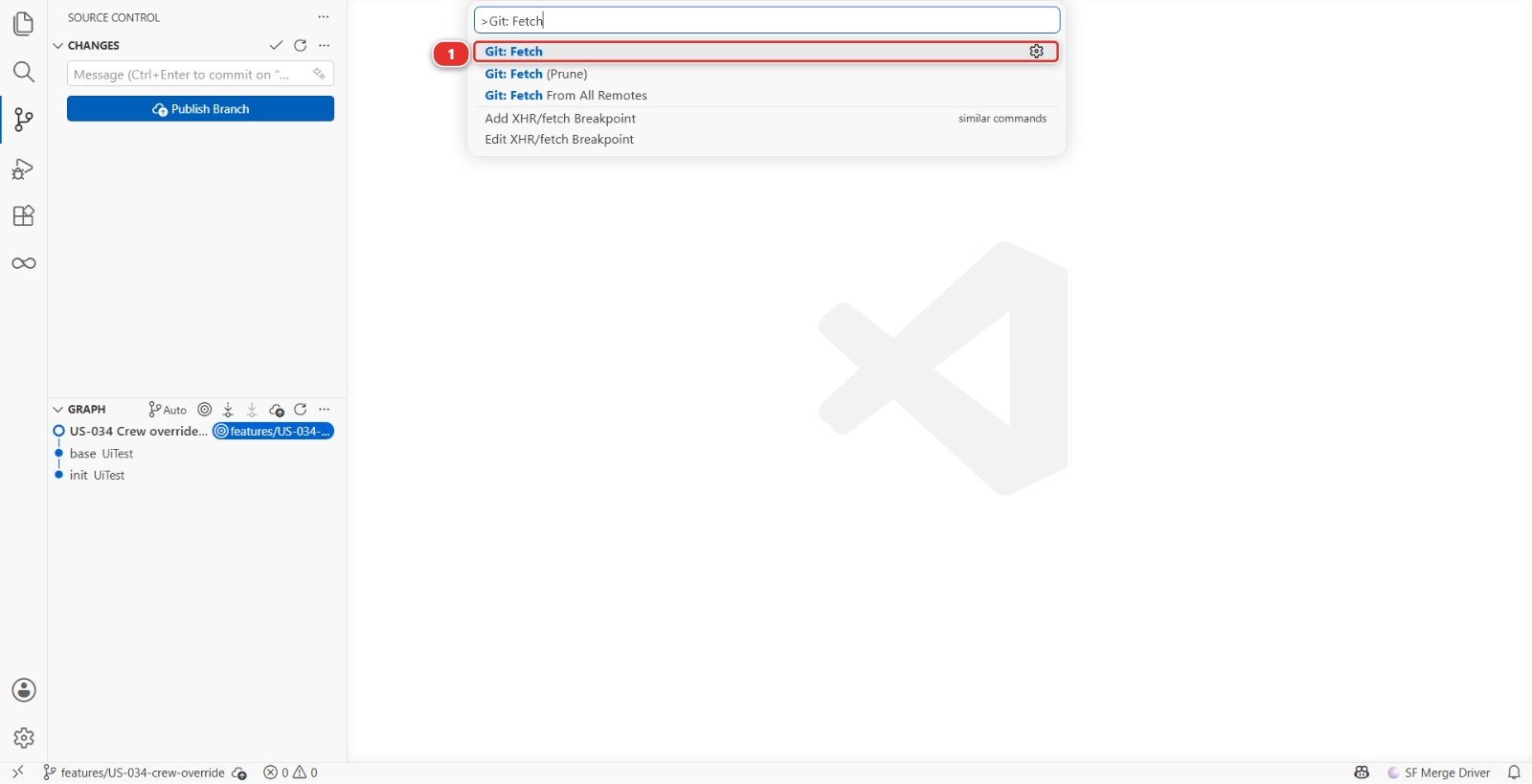

First make sure your machine knows what Mariia merged. Open the Command Palette: View > Command Palette in the menu bar, or Ctrl+Shift+P (Cmd+Shift+P on a Mac). Type Git: Fetch and pick Git: Fetch (1). Nothing changes in your files: fetching only downloads what is new on GitHub.

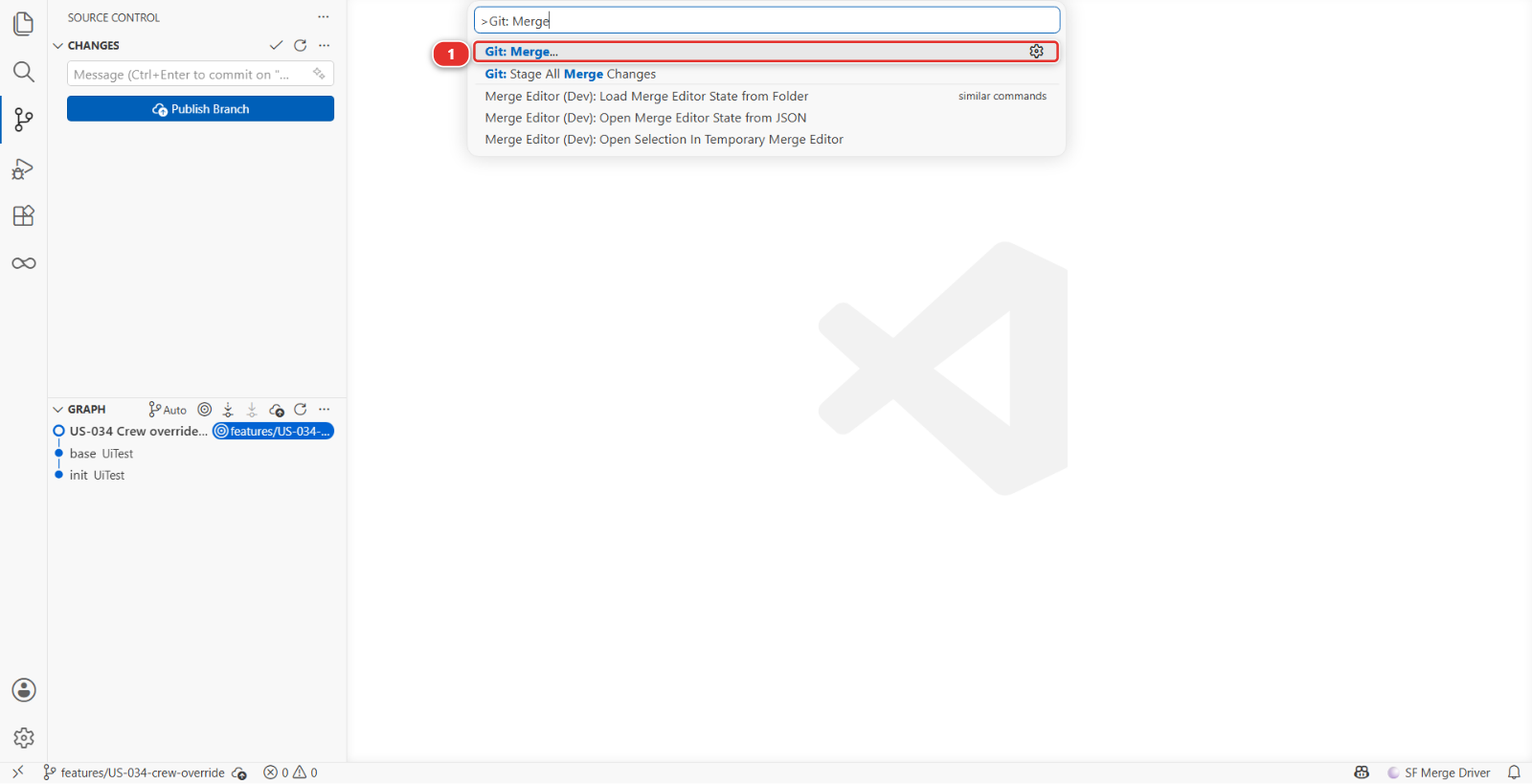

Then the Command Palette again, type Git: Merge, and pick Git: Merge... (1). The same command is in the ... menu at the top of the Source Control panel, under Branch.

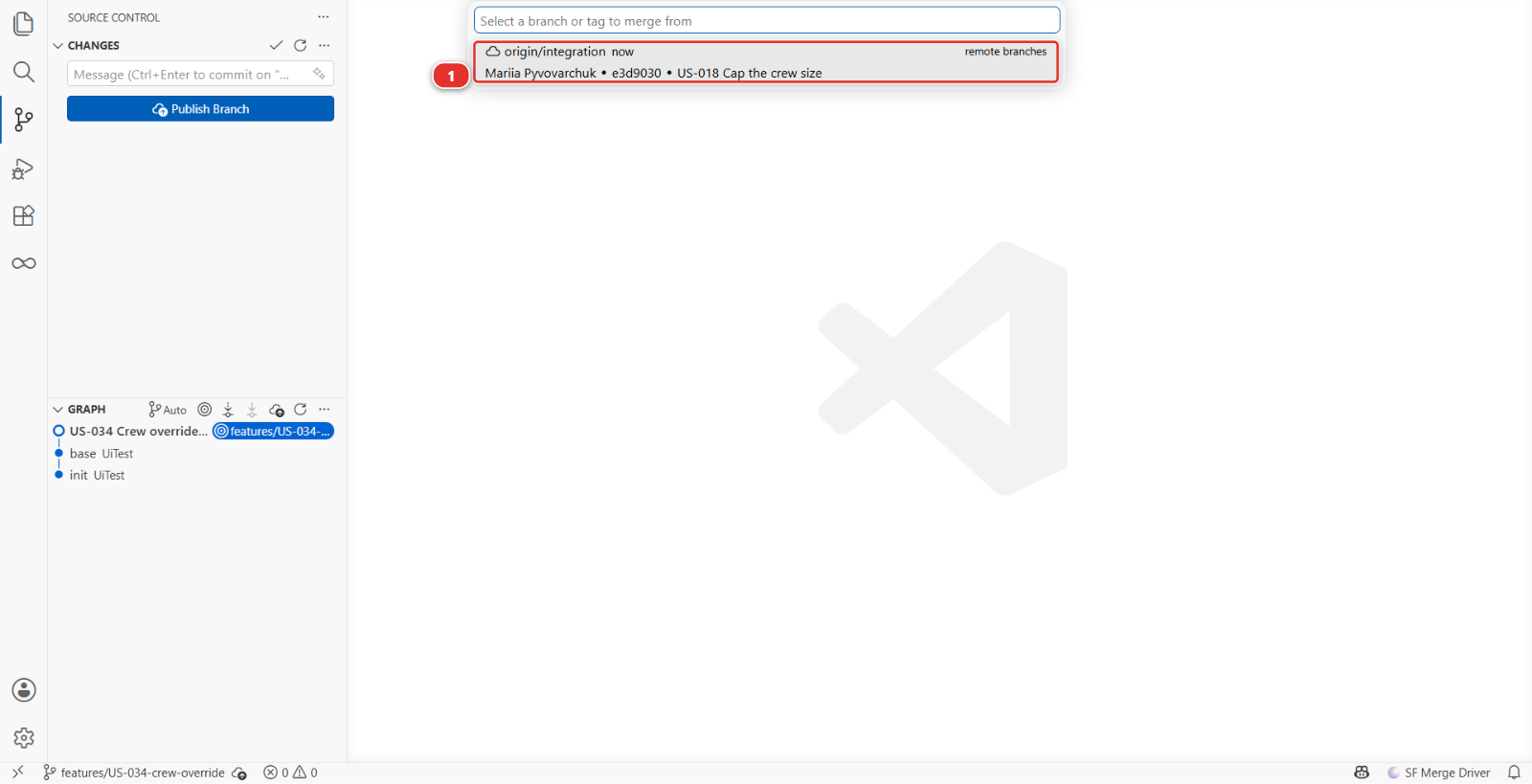

VS Code asks which branch to bring in. Type integration and pick origin/integration (1), listed under remote branches: the copy of integration that is on GitHub, with Mariia's work in it. Not the plain integration if it is listed too: that is the copy on your machine, which you have not updated since you branched.

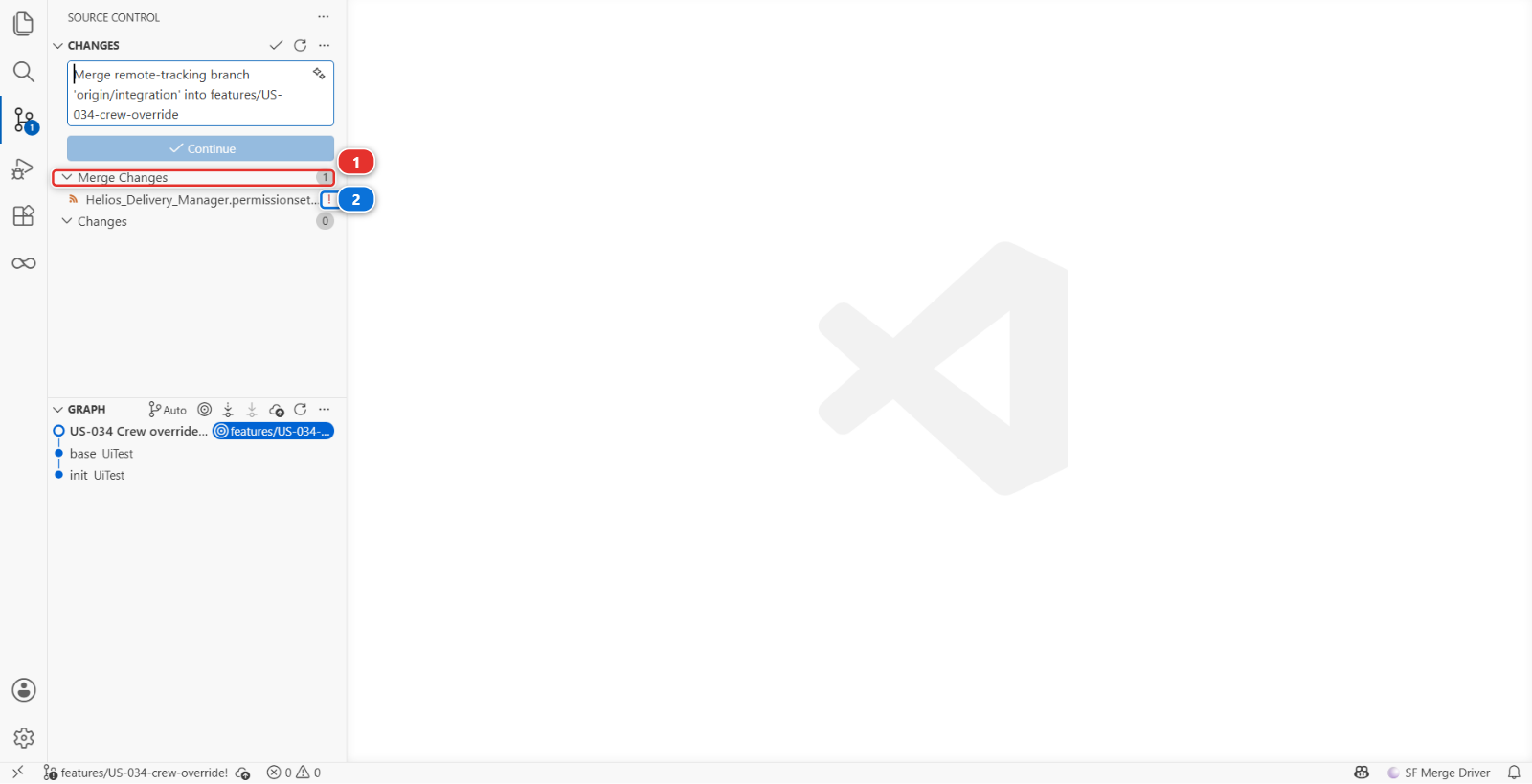

Two files come back marked as conflicting. They appear in the panel under Merge Changes (1), each with a ! (2), and the status bar says a merge is in progress.

Under the hood: what Merge Branch ran

git fetch origin
git merge origin/integration

A conflict is not an error. It is git saying that two people wrote in the same place and it will not guess which one meant it.

5. Resolve the permission set: take both¶

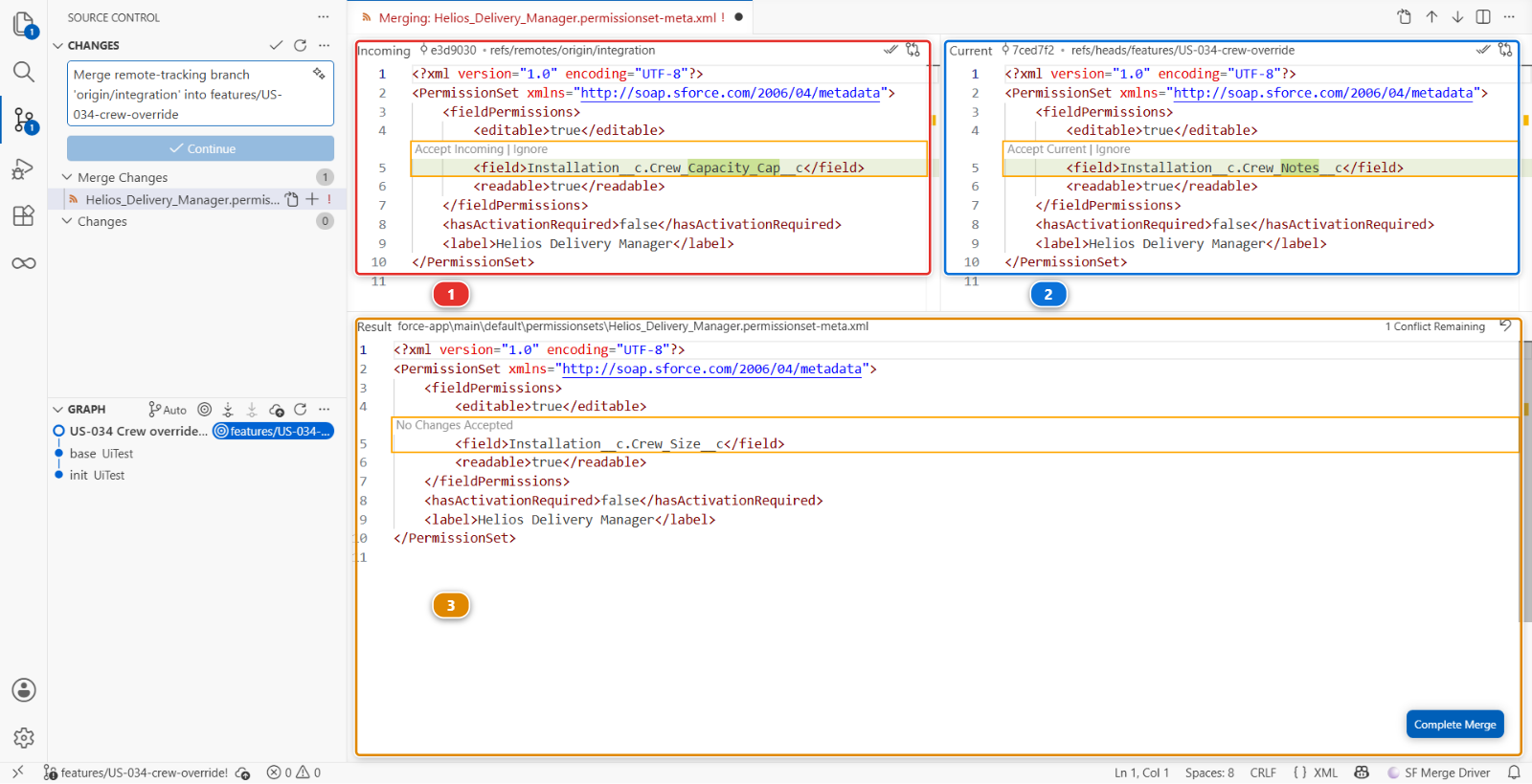

Click the permission set file under Merge Changes, then Resolve in Merge Editor at the bottom right of the file. VS Code opens its merge editor: Incoming (1), Mariia's version from integration, on the left, Current (2), yours, on the right, and the Result (3) you are building at the bottom, which starts from the version you both branched from.

This one is mechanical, and you can decide it without understanding the XML: both entries belong. Mariia granted one field, you granted another, and a permission set holds as many as it needs. Keep both sides: click Accept Incoming (1) above the highlighted line of the Incoming pane, then Accept Current (2) above the one of the Current pane.

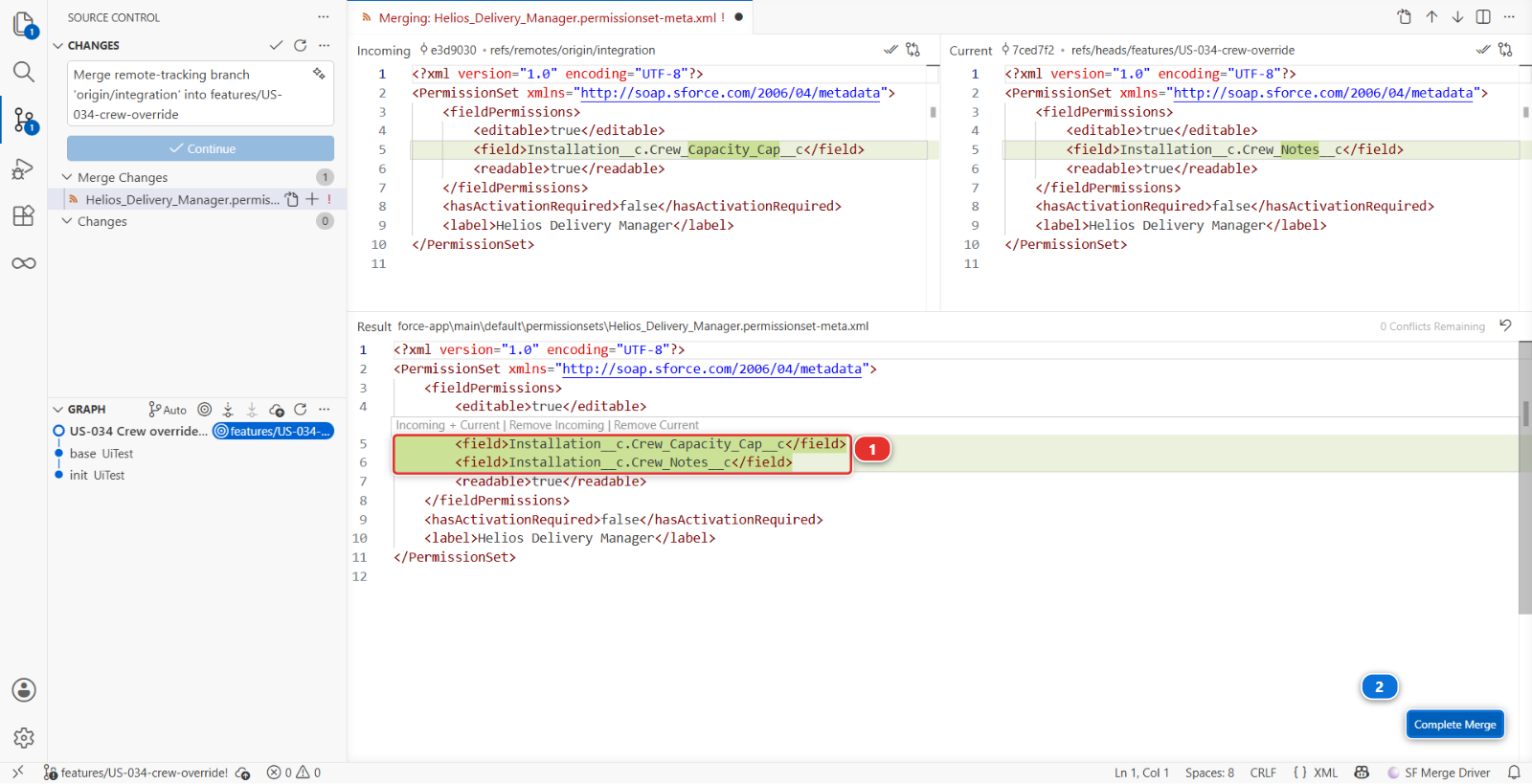

Now read the Result (1) before anything else:

The editor kept both lines, and put them in the same block: one <fieldPermissions> with two <field> lines, which Salesforce refuses. Git merges lines, not permissions. You want two complete blocks, one per field, Mariia's Crew_Capacity_Cap__c first and your Crew_Notes__c second. Type it in the Result pane: after the first <field> line, add the four lines that close the first block and open the second:

        <readable>true</readable>
    </fieldPermissions>
    <fieldPermissions>
        <editable>true</editable>

Copy them from here: nobody is asked to write XML from memory. The under the hood section below shows the result you are aiming at. Then click Complete Merge (2).

Take both is the right answer for almost every permission set conflict. Choosing one side is how a teammate's permission quietly disappears, and nobody notices until somebody cannot see a field.

Under the hood: what the conflict actually looked like

Git conflicts on lines, not on XML, so the markers landed inside one block rather than around two:

    <fieldPermissions>
        <editable>true</editable>
<<<<<<< HEAD
        <field>Installation__c.Crew_Notes__c</field>
=======
        <field>Installation__c.Crew_Capacity_Cap__c</field>
>>>>>>> origin/integration
        <readable>true</readable>
    </fieldPermissions>

Once you added the four lines, the result holds two complete blocks, in alphabetical order, which is how Salesforce writes them anyway:

    <fieldPermissions>
        <editable>true</editable>
        <field>Installation__c.Crew_Capacity_Cap__c</field>
        <readable>true</readable>
    </fieldPermissions>
    <fieldPermissions>
        <editable>true</editable>
        <field>Installation__c.Crew_Notes__c</field>
        <readable>true</readable>
    </fieldPermissions>

6. Resolve the flow: understand both, then decide¶

This one you cannot resolve by taking both, because the two changes are in the same decision path.

Mariia's change caps the crew at what the installation allows: never more than N
Your change raises the crew to at least 3 on flat roofs: never fewer than 3

Read on their own, both are correct. Together, they can contradict each other on a flat roof whose cap is 2.

This is the moment that matters, and the answer is not technical: go and ask Mariia. On a real project, a conflict in business logic is a conversation, not a merge strategy.

For this lab, the decision has been made for you: the cap wins. A crew larger than the installation allows is a safety problem; a crew of 2 on a flat roof is a slow day. Resolve so that your minimum applies only when it does not exceed Mariia's cap.

Do it in Flow Builder, not in the file. A flow is stored as XML that nobody can read reliably, developers included, and a flow that deploys but behaves wrongly is worse than one that fails.

Open the flow file under Merge Changes in the merge editor, the same way. Click Accept Incoming above each conflict of the Incoming pane, then Complete Merge: Mariia's whole version wins for now
Save / Publish User Story is not what you want yet. First send what the merge brought in to your dev org, so helios-dev has Mariia's field, her grant and her cap: in the Explorer, right-click the force-app folder, then SFDX: Deploy This Source to Org, the same command Lab 2.5 used on one class

It deploys every file of the folder as it is on your machine, and nothing else. The sfdx-hardis Push from local files to Salesforce org command would send your org every change git has seen since the last sync, deletions included, which is more than this step needs
Open Flow Builder in the org, on Installation_Assign_Crew, and add your flat-roof rule again, before her cap: the flow raises a flat roof crew to three first, and her cap, which now runs last, has the final word
Come back to VS Code, bring the rebuilt flow down with Commit changes, commit it, and publish

Slower to describe, much faster to do, and you can see what you are building.

Under the hood: resolving it in the file instead

If you can read flow XML and want to: take Mariia's version of the element and its connectors as the base, re-add your flat-roof decision after her cap, and delete every conflict marker. Then publish, which re-runs the cleaning rules over what you wrote by hand.

The risk is not that it fails. The risk is that it deploys and the decisions run in an order you did not intend, which no check catches and no test in this project covers.

7. Finish the merge and re-validate¶

Complete Merge moved each file from Merge Changes to Staged Changes. When both are there, the message box already reads Merge remote-tracking branch 'origin/integration': click Commit, then Sync Changes to push.

Then re-publish: Save / Publish User Story. This matters. The merge produced XML by hand, and publishing re-runs the cleaning rules over it and rebuilds manifest/package.xml from what your branch now changes. Skipping it is how a stray conflict marker reaches a deployment.

Watch the check go green, then merge.

8. Verify both changes survived¶

In helios-integration:

The flow caps the crew, Mariia's rule
The flow raises flat-roof crews, your rule, without breaking the cap
The permission set grants both fields

If either side is missing, the resolution lost work, and the badge audit will say so.

What you should see¶

No conflict markers anywhere: search the repository for <<<<<<<
Both field permissions in Helios_Delivery_Manager
Both behaviours in the flow

If it goes wrong

Error parsing file: Element assignments is duplicated at this location in type Flow. Your resolution left the flow with its elements out of order. A flow file groups every element of the same kind together: all the assignments, then all the decisions. If your merge dropped a kept element between two blocks of another kind, move it back up next to its own kind. The order inside each group does not matter, the grouping does.

Element field is duplicated at this location in type PermissionSetFieldPermissions. You kept both sides inside a single grant instead of keeping both grants. One <fieldPermissions> block names one field: the fix is two blocks, not one block with two <field> lines.

The flow will not deploy after the merge: "duplicate element name". You kept both sides of an element that can only exist once. Flow element names are unique. Rename or remove one.

You lost your change entirely. You accepted Mariia's side on the whole file. In the Source Control panel, the ... menu > Branch > Abort Merge, then start step 4 again.

The check fails on a conflict marker. Search the whole repository for <<<<<<<, ======= and >>>>>>>. A marker in an XML file is sometimes syntactically tolerated by git and always fatal to Salesforce.

You cannot untangle it at all. Training: Level 2 > Reset this level, then redo from step 1. Losing twenty minutes is better than merging something you do not understand.

Check your work¶

Welcome page > Training: Level 2 > Check my work, then pick Lab 2.7.

The check asserts outcomes, not procedure: both changes present and correct on integration, no markers left. However you got there, including resolving in the GitHub web editor or redoing the work in the Flow Builder, passes.

Go deeper¶

Next: Lab 2.8 - Recover from committing the wrong metadata
